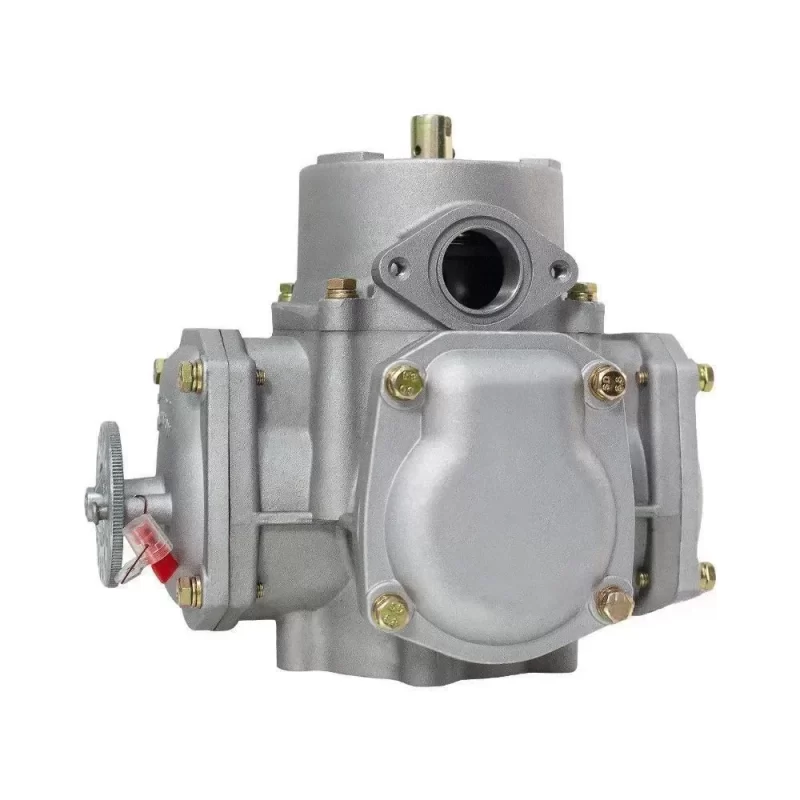

Flow meter: 5-50L/Min- Description
This RSJ50 flow meter adopts advanced technology of U.S. Bennett company, which can be widely used for different fuel dispensers. With advantage of high flow, long working life, high accuracy, firm structure, easy installation, etc., it can be the best choice of fuel dispenser component.
1. Micro-accurate, 4-piston, positive displacement typemeter with rotary valve, exterior adjustment and double oil lip seal for long life
2. External structure achieved by single body design of components
3. External accuracy: ± 0.2% with high flow through-put
4. Body: Aluminum(Spray-painted) & Seals: Buna-N
5. 100% factory testedrmance
Specification:
| Model | RSJ-50 | RSJ-65 |
| Flow meter | 5-60L/Min | 5-65L/Min |
| Disch rate per revo | 0.5L | 0.5L |
| Adju Mini volu | 0.05% | 0.05% |
| Accurary | ±0.2% | ±0.2% |
| Repeatable Tole | ≤0.05% | ≤0.05% |
| Package | 2pcs/carton | 2pcs/carton |
| N.W | 10KGS | 11.5KGS |
| G,W | 10.5KGS | 12KGS |
| Dimension | 420*260*230mm | 420*270*240mm |
